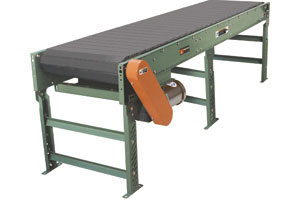

BELTING: Series 400 flat top gray polypropylene belt, FDA approved belt.
DRIVE SPROCKETS: 10.1" pitch dia. with 2.5" square bore.
TAIL SPROCKETS: 10.1" pitch dia. with 2.5" square bore.
END DRIVE: Allows one-direction (unit) operation.
BED: 7" x 1-1/2" x 7 ga. channel frame with open style bed construction and UHMW wearstrips mounted to longitudinal channels.
TAKE-UP: Catenary type located at discharge end.
RETURN ROLLERS: 1.9" dia. x 16 ga. steel, model 196S, adjustable with rubber sleeves.
|
BEARINGS: Drive and tail shaft bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings.
FLOOR SUPPORTS: Optional.
BELT SPEED: 35 FPM, constant.
MOTOR DRIVE: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor.
ROLLER CHAIN: Drive shaft is driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base.
ELECTRICAL CONTROLS: Optional.
|
